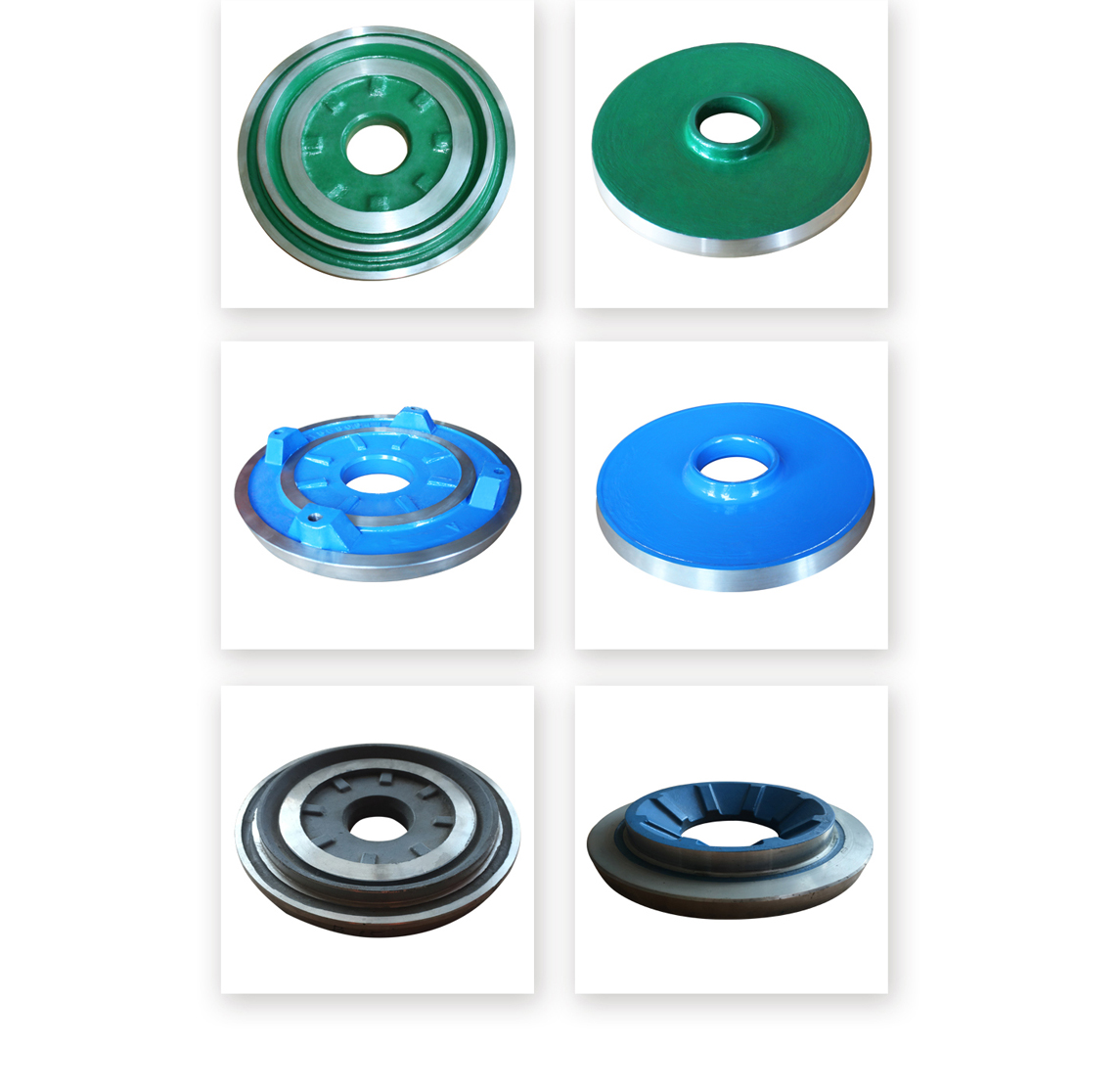

沃尔曼泵后护板，是过流部件中重要得一个配件，位置在叶轮后，装在护套后面，所以叫做后护板，采用材质有：高铬合金，天然橡胶、聚氨酯等。沃尔曼泵后护板零件代码以041结尾。
|
Frame Plate Liner Insert Code |
Warman AH Slurry Pumps |
Materials |
|
B1041 |
1.5/1B-AH |
A05,A49,R55,U01 |
|
B15041 |
2/1.5B-AH |
A05,A49,R55,U01 |
|
C2041 |
3/2C-AH |
A05,A49,R55,U01 |
|
D3041 |
4/3C-AH, 4/3D-AH |
A05,A49,R55,U01 |
|
E4041 |
6/4D-AH, 6/4E-AH |
A05,A49,R55,U01 |
|
F6041 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
A05,A49,R55,U01 |
|
G8041 |
10/8ST-AH |
A05,A49,R55,U01 |
|
G10041 |
12/10ST-AH |
A05,A49,R55,U01 |
|
G12041 |
14/12F-AH,14/12ST-AH |
A05,A49,R55,U01 |
|
H14041 |
16/14TU-AH |
A05,A49,R55,U01 |
|
FPL Insert |
Warman HH Slurry Pumps |
Materials |
|
CH1041 |
1.5/1C-HH |
A05,A49,R55,U01 |
|
DH2041 |
3/2D-HH |
A05,A49,R55,U01 |
|
EH3041 |
4/3E-HH |
A05,A49,R55,U01 |
|
FH4041 |
6/4F-HH |
A05,A49,R55,U01 |
|
FH6041 |
6S-H, 8/6S-H |
A05,A49,R55,U01 |
|
FPL Insert |
Warman L Slurry Pumps |
Materials |
|
175041 |
20A-L |
A05,A49,R55,U01 |
|
32056 |
50B-L |
A05,A49,R55,U01 |
|
43041 |
75C-L |
A05,A49,R55,U01 |
|
64041 |
100D-L |
A05,A49,R55,U01 |
|
86041 |
150E-L |
A05,A49,R55,U01 |
|
108041 |
200E-L |
A05,A49,R55,U01 |
|
SL30041 |
300S-L |
A05,A49,R55,U01 |
|
SL35041 |
350S-L |
A05,A49,R55,U01 |
|
STL40041 |
400ST-L |
A05,A49,R55,U01 |
|
STL45041 |
450ST-L |
A05,A49,R55,U01 |
|
TUL55041 |
550TU-L |
A05,A49,R55,U01 |
|
FPL Insert |
Warman G(H) Gravel Pumps |
Materials |
|
DG4041 |
6/4D-G, 6/4E-G |
A05 |
|
EG6041 |
8/6E-G |
A05 |
|
FG8041 |
10/8F-G, 10/8S-G |
A05 |
|
FG10041 |
12/10G-G |
A05 |
|
GG12041 |
14/12G-G |
A05 |
|
FGH8041 |
10/8F-GH |
A05 |
|
SGGH10041 |
12/10G-GH |
A05 |
|
TG14041 |
16/14TU-GH |
A05 |
|
FPL Insert |
Warman SP Vertical Slurry Pumps |
Materials |
|
SP4041 |
40PV-SP |
A05,A49,R55,U01 |
|
SP65041 |
65QV-SP |
A05,A49,R55,U01 |
|
SP10041 |
100RV-SP |
A05,A49,R55,U01 |
|
SP15041 |
150SV-SP |
A05,A49,R55,U01 |
|
SP20041 |
200SV-SP |
A05,A49,R55,U01 |
|
SP25041 |
250TV-SP |
A05,A49,R55,U01 |
|
SP30041 |
300TV-SP |
A05,A49,R55,U01 |
