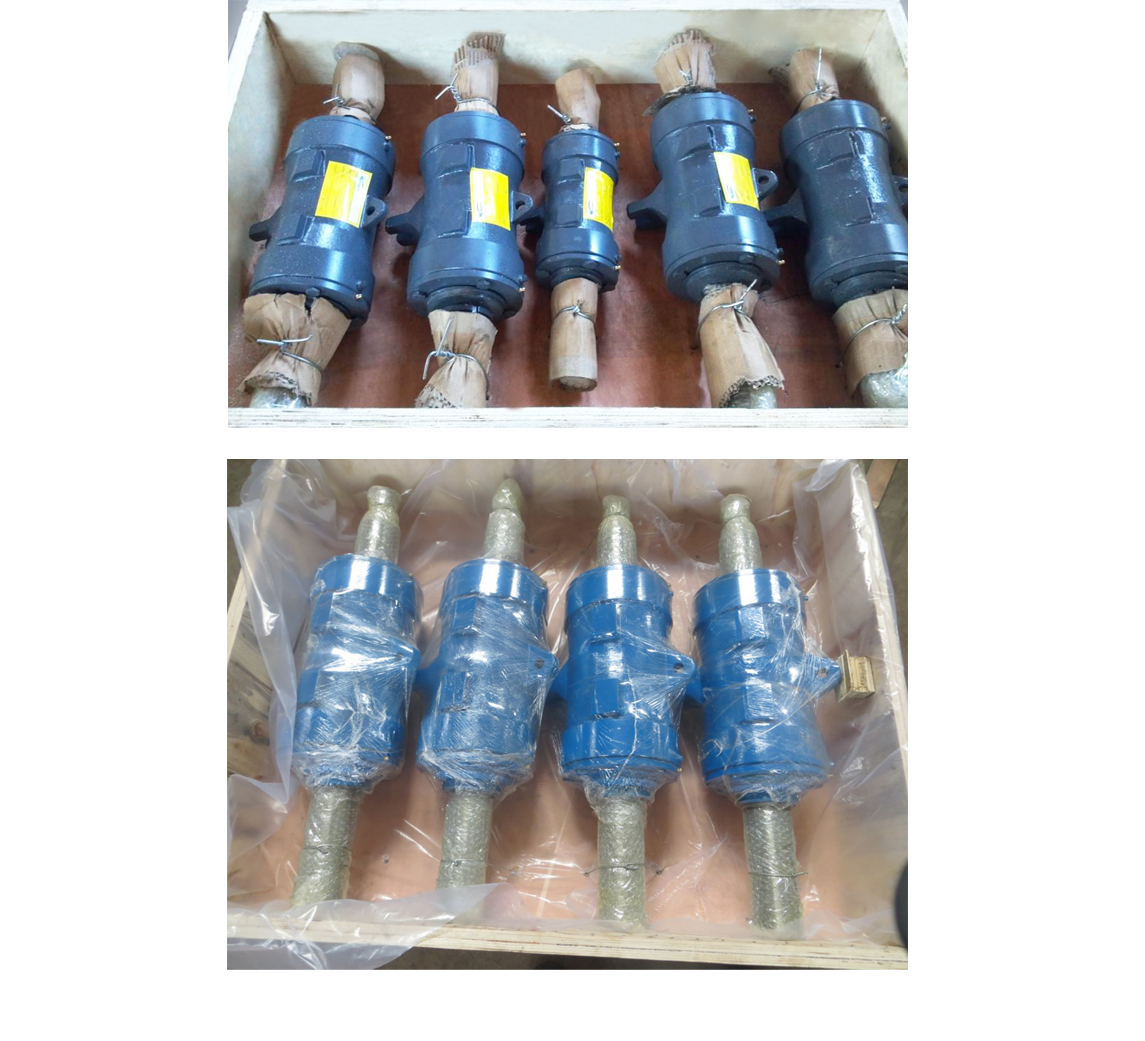

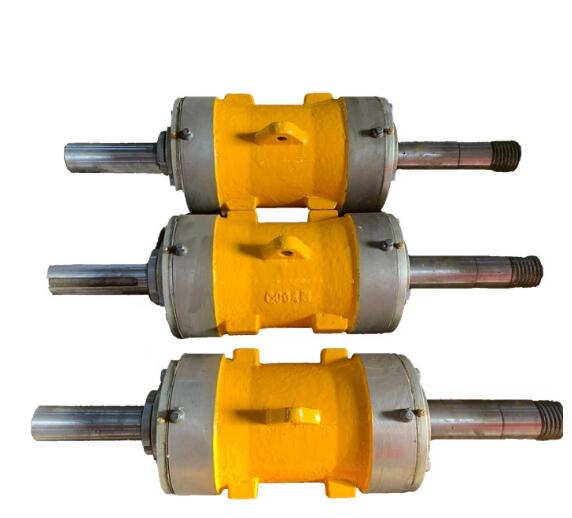

沃尔曼渣浆泵轴承组件，也叫做转子总成，是渣浆泵传动部分重要得一个组件，由轴、轴承、端盖、迷宫套、迷宫环组成。
渣浆泵轴承组件的基本零件号为005，是驱动端向叶轮传递动力的主要部件。与水泵相比，渣浆泵轴承组件具有大直径的轴和较短的悬伸，从而最大程度地减少了偏转和振动。标准渣浆泵轴承组件有两套面对面安装在可移动轴承座中的单列圆锥滚子轴承，高容量轴承组件有一套在渣浆泵叶轮附近安装的双列圆锥滚子轴承和一套或在电动机附近安装两组圆柱滚子轴承。
轴承润滑脂建议采用锂基润滑脂2#或3#。装配时加润滑脂量可参照下表：单位 克
|
润滑脂量 |
B |
C |
D |
E |
F |
G |
R.RS |
S.ST |
T.TU |
|
驱动端轴承 |
30 |
50 |
100 |
200 |
500 |
1150 |
200 |
500 |
1150 |
|
泵端轴承 |
30 |
50 |
100 |
200 |
500 |
1150 |
400 |
1000 |
2300 |
渣浆泵轴承组件的基本零件号：
|
轴承组件代码 |
渣浆泵型号 |
可选里面配套轴承 |
|
B005M |
1.5/1B-AH, 2/1.5B-AH |
ZWZ, SKF, TIMKEN Brand |
|
C005M |
3/2C-AH, 4/3C-AH |
ZWZ, SKF, TIMKEN Brand |
|
D005M |
4/3D-AH, 6/4D-AH |
ZWZ, SKF, TIMKEN Brand |
|
E005M |
6/4E-AH, 8/6E-AH |
ZWZ, SKF, TIMKEN Brand |
|
R005M |
8/6R-AH |
ZWZ, SKF, TIMKEN Brand |
|
FAM005M |
8/6F-AH, 10/8F-AH, 12/10F-AH |
ZWZ, SKF, TIMKEN Brand |
|
SH005M |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
ZWZ, SKF, TIMKEN Brand |
|
TH005M |
16/14TU-AH, 18/16TU-AH, 20/18TU |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
HH Slurry Pump |
Slurry Pump Bearing Brand |
|
CAM005M |
1.5/1C-HH |
ZWZ, SKF, TIMKEN Brand |
|
DAM005M |
3/2D-HH |
ZWZ, SKF, TIMKEN Brand |
|
EAM005M |
4/3E-HH |
ZWZ, SKF, TIMKEN Brand |
|
FAM005M |
6/4F-HH |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
M Slurry Pump |
Slurry Pump Bearing Brand |
|
EAM005M |
10/8E-M |
ZWZ, SKF, TIMKEN Brand |
|
R005M |
10/8R-M |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
L Slurry Pump |
Slurry Pump Bearing Brand |
|
ASC005M |
20A-L |
ZWZ, SKF, TIMKEN Brand |
|
BSC005M |
50B-L |
ZWZ, SKF, TIMKEN Brand |
|
CAM005M |
75C-L |
ZWZ, SKF, TIMKEN Brand |
|
DSC005M |
100D-L |
ZWZ, SKF, TIMKEN Brand |
|
ESC005M |
150E-L |
ZWZ, SKF, TIMKEN Brand |
|
S005M |
300S-L |
ZWZ, SKF, TIMKEN Brand |
|
Bearing Assembly |
G(H) Gravel Pump |
Slurry Pump Bearing Brand |
|
DAM005M |
6/4D-G |
ZWZ, SKF, TIMKEN Brand |
|
EAM005M |
8/6E-G |
ZWZ, SKF, TIMKEN Brand |
|
F005M |
10/8F-G |
ZWZ, SKF, TIMKEN Brand |
|
S005-3M |
10/8S-G, 10/8S-GH |
ZWZ, SKF, TIMKEN Brand |
|
G005M |
12/10G-G, 14/12G-G, 12/10G-GH |
ZWZ, SKF, TIMKEN Brand |
|
TH005M |
16/14TU-GH |
ZWZ, SKF, TIMKEN Brand |
沃尔曼轴承组件_石家庄渣浆泵轴承组件_石家庄轴承组件生产厂家
轴承: ZWZ, SKF, TIMKEN etc
轴: 45#
泵系列: AH, HH, L, M, SP(R), G/GH, AF
